Implementation standards:
Product implementation GB / T 5023 "rated voltage 450 / 750V and
below PVC insulated cables", JB / T 8734 "rated voltage 450 / 750V
and below PVC insulated cables wires and cords" and GB / T 19666
"resistance Fire and fire-resistant wire and cable General. "
Product Usage:
This product is suitable for AC and DC voltage 450 / 750V and below
power plant, household appliances, instruments and telecommunications equipment
wire and cable.

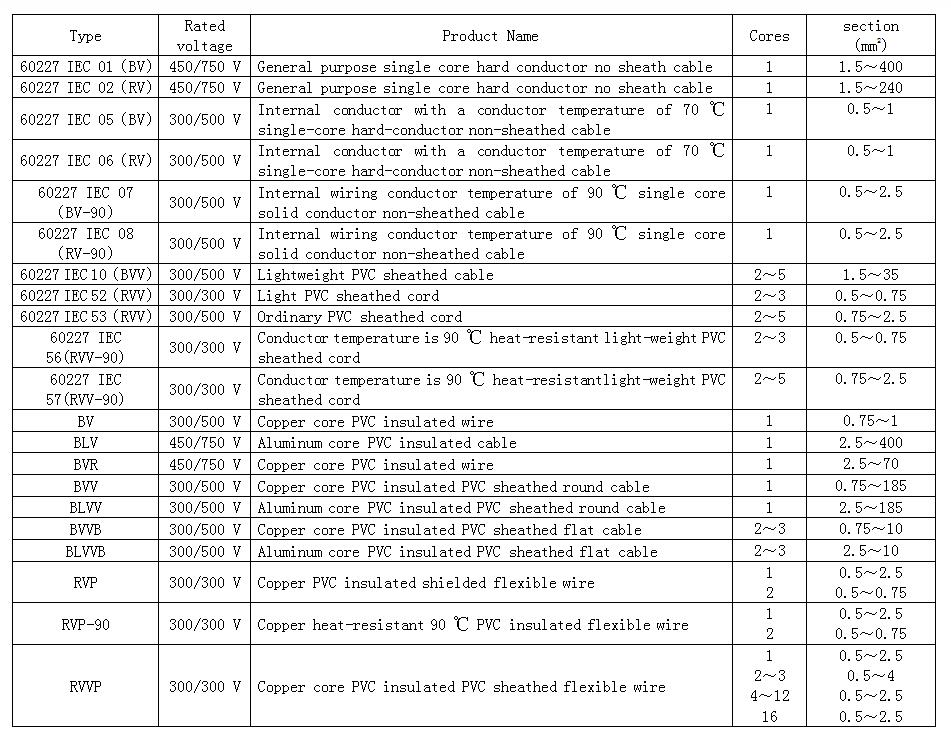

Type:
Use features：
1、Maximumrated temperature
Long-term wire and cable conductor allows the maximum operatingtemperature of 70 ℃ and 90 ℃ .
2、required
2.1 Laying wire and cable from the drop when the limit, the laying ofthe ambient temperature is not less than 0 ℃.
2.2 Finished insulated wire and finished wire and cable, placed in 20 +5℃ room temperature water for at least 1h, can withstand the standardAC voltage test.
2.3 Wire and cable has good electrical insulation properties, mechanicalproperties and non-flammable performance, reliable, convenient and durable.
2.4 Cable minimum bend radius (B series)
Cable diameter (D) allowsbending radius should not be less than 6D.
Note: D is the measured value of the cable diameter.
